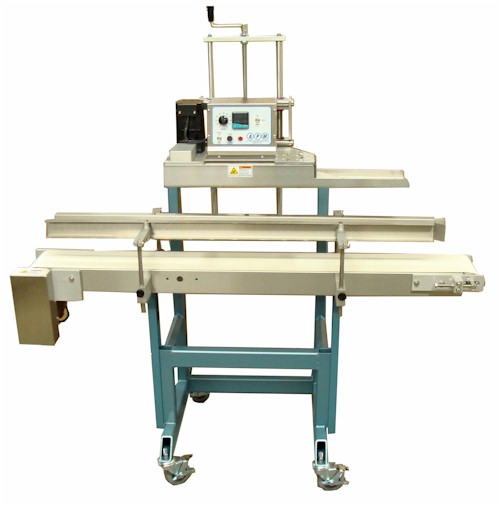

     USDA approved Vertical Rotary Band Sealing System with Lower Carry Synchronized Conveyor

Features:
  • Supplied with Lower Carry Belts and interfaced Variable Speed Conveyor, 6” wide x 5’ long, with fully adjustable stainless steel Guide Rails. Adjustable height Sealing Assembly Floor Stand with crank handle is now standard.
  • This continuous band sealer will seal Polyethylene, Polypropylene, Tyvek®, Foil, Nylon, Co-extrusions, poly-laminates and poly-coated paper materials.
  • Variable speeds up to 540 inches per minute (45 fpm) with dual 3 phase inverter motor drive. Faster versions available.
  • Quality hermetic seals of 3/8” wide are standard; 1/4” or 1/8” wide are available. Seals are made by the use of special heavy duty wear-resistant laminated Teflon bands.
  • Digital Temperature Control with PID Autotune maintains consistent heat and assures consistently hermetic seals.
  • Unit is designed with 5” long heating zone and 5” long cooling zone for greater flexibility in product sealing of difficult materials with temperatures up to 450 degrees Fahrenheit.
  • Hard Chrome plated sealing bars followed by Nickel plated cooling bars allow for maximum wear resistance.
  • Electrical 110 VAC 10 amps/ 60 Cycle. No compressed air required.
  • Optional Roller In-feed Conveyor for easy product loading is available upon request.
  • Optional Casters for easy positioning are available upon request.
  • Optional Embossing Coder or Hot Ink printer for product marking is available upon request.
  • Options for Standup Pouches with zippers available
  • Custom configurations are available; inquire within our Sales Department for your unique application.
     altVideo of the VCBSDM-3/8 over 30PPM
